CHARACTERISTICS

Operating speed	1mm to 2mm/s (TZ5104)
Operating frequency	Mechanically:120 operations/min Electrically:30 operations/min
Contact resistance	15mΩ max.( initial)
Insulation resistance	100MΩ max.( at 500 VDC)
Dielectric strength	1,000VAC,50/60Hz, fo 1 minute between non-continuous terminals 2,00VAC,50/60Hz, for 1 1minute between current-carrying and non-current-carring pasts and between each terminal and ground
Vibration	Malfunction durability:10 to 55HZ, 1.5mm double amplitude
Shock	Mechanical durability: approx. 1,000m/S²(approx.100G's) Mechanical durability: approx. 300m/S²(approx.30G's)
Ambient temperature	Operating:-10 t~+80ºC
Humidity	95% HR max.
Service life	Mechanically:15,000,000 operations min. (At rated ot value)Electrically:500,000 operations min
weight	Approx.275g (with Type TZ-5104)
Degree of protection	IEC:IP67
Temperature rise	50 degrees max.

SPECIFICATIONS

• RATINGS

OTES : 1. inductive load has a power factor of 0.4 time. constant =7 msec.

            2. lamp load has an inrush current of 10 times the steady-state current, while motor load has an inrush current of 6 times the steady-state current.

CONTACT CONFIGURATION



Note 1 : Adjustable roller arm (50 dia. rubber roller) type is IP65.

OVERTRAVEL TYPE

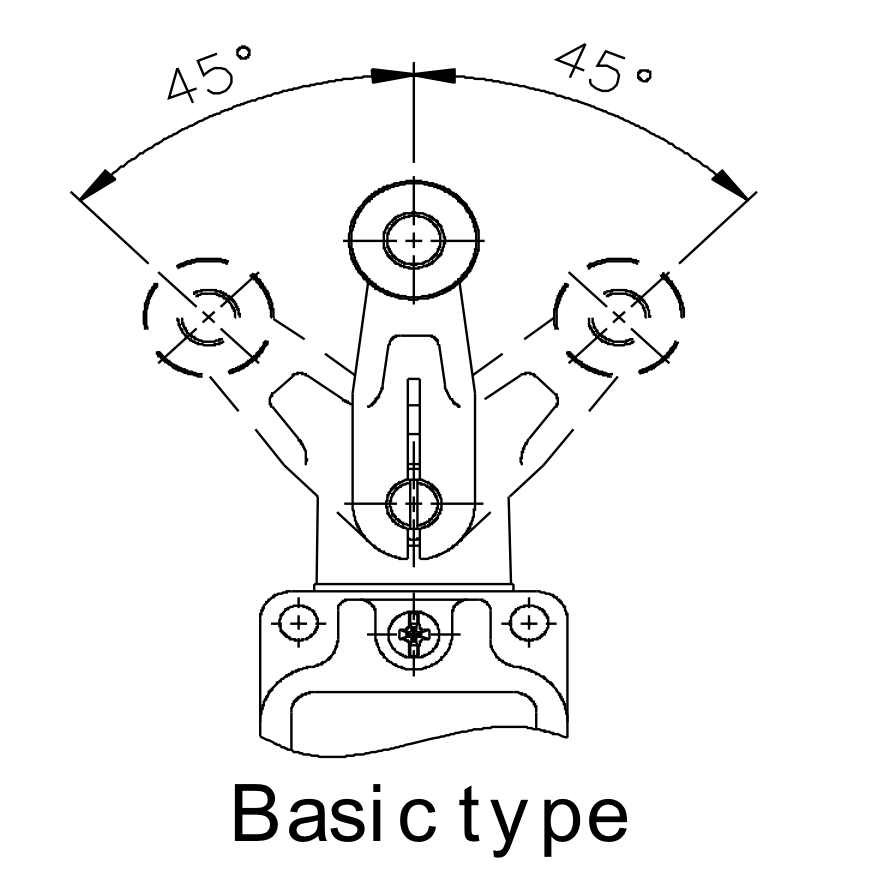

The Overtravel Type is a limit switch which is provided with a greater OT to facilitate dog setting. Since this type is identical to the Basic Type in dimensions, both types are interchangeable.The Overtravel Type is classified into two versions -2 series and -2N series.

-2 SERIES

The head of - 2 series switch can be installed in any of the four directions.

90* operation on only one side - impossible

90* operation on either side - possible

- 2N SERIES

The head of -2N series switch can be installed only in two directions, forward and backward.

90* operation on only one side - possible

90* operation on either side – possible



OPERATION CHARACTERISTICS

TYPE	TZ-5101	TZ-5102	TZ-5109	TZ-5104	TZ-5108	TZ-5107	TZ-5105
OF max.	2,720g	2,720g	2,720g	1,360g	1,360g	142g	1,200g
RF min.	910g	910g	910g	227g	227g	28g	-
PT max.	1.7mm	1.7mm	1.7mm	20º	20º	20º	55º
OT min.	6.4mm	5.6mm	5.6mm	30º	30º	30º	35º
MD max.	1mm	1mm	1mm	12º	12º	12º	-
OP	34±0.8mm	44.8±0.8mm	44.8±0.8mm	-	-	-	90±10º
TTP max.	29.5mm	39.5mm	41mm	-	-	-	-



TYPE	TZ-5106.5166.5168.5169	TZ-5104-2.5108-2	TZ5104-2	TZ-5104-2N.5108-2N	TZ-5107-2N
OF max.	150g	1000g	290g	980g	290g
RF min.	-	100g	25g	120g	250g
PT max.	28mm	20º	20º	20º	20º
OT min.	-	55º	55º	70º	70º
MD max	-	12º	12º	10º	10º

• Mounting holes

  Basic type and-2 SERIES



• DIMENSIONS

•
•
•
